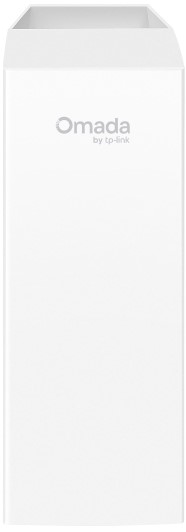

TP-Link Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point - Wireless Bridge 5GHz Up to 867Mbps Data Rate, Up to 1km Long Range Transmission, 3 x Gigabit Ethernet Ports, 24V Passive PoE, 2 x 2 Dual-Polarized Directional MIMO Antennas, IP65 Weatherproof Enclosure, Retail Box, 6 Months Warranty.

Product Overview

TP‑Link EAP211‑Bridge KIT 5 GHz 867 Mbps Bridge Outdoor‑ready IP65‑rated 5 GHz point‑to‑point bridge with up to 1 km line‑of‑sight range, 3× gigabit Ethernet ports, and power via 12 V DC or 24 V passive PoE (adapter included). Delivers up to 867 Mbps on 5 GHz with 2×2 MU‑MIMO, beamforming, mesh, load balance, seamless roaming (802.11r), VLAN, captive portal, and Omada SDN management via app, OC300/OC200, or software/cloud controller. Compact at 79 × 60 × 224 mm with pole‑mount kit, operating from ‑40 °C to 70 °C, ideal for long‑distance links across warehouses, farms, and multi‑building sites.

Features

•802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
•Ideal for long-range wireless transmission up to 1 km.
•Auto-pairing and agile LEDs for efficient deployment.
•3× Gigabit Ethernet ports for more high-speed IP camera connections.
•Supports Omada SDN for remote and centralized management.
•IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
•Supports Passive PoE for flexible deployment (adapter included).

Specifications

•Product Code: EAP211 BRIDGE KIT
•Description: Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point

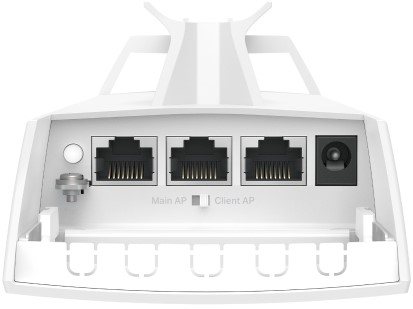

•Interface: 3x Gigabit Ethernet Ports*6
•Button: Reset
•Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
•Max. Power Consumption: 11.5W
•Dimensions ( W x D x H ): 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Antenna
•Internal 2×2 Dual-polarized directional MIMO antennas
•5 GHz: 7.0 dBi
•Horizontal:70°, Vertical: 70°
•Weatherproof Enclosure: IP65

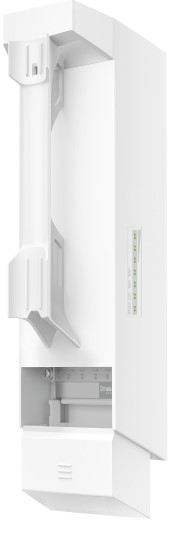

•Mounting: Pole Mounting (Accessories included)
•Coverage: 1000m(3280ft)5
•Wireless Standards: IEEE 802.11 a/b/g/n/ac
•Frequency: 5 GHz
•Signal Rate: 5 GHz: Up to 867 Mbps

Wireless Functions
• Mesh
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Load Balance
• Seamless Roaming(802.11r)
• Beamforming
• Airtime Fairness
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security
• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power
• CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);
• FCC:
<22dBm (5 GHz band1/4)

•Omada App: Yes
•Restore & Backup: Yes
•Firmware update via Web: Yes
•NTP: Yes
Centralized Management
•Omada Hardware Controller (OC300)
•Omada Hardware Controller (OC200)
•Omada Software Controller
•Omada Cloud-Based Controller
•Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
•LED ON/OFF Control: Yes
•Management MAC Access Control: Yes
•SNMP: v1, v2c, v3
•SSH: Yes
•Web-based Management: Yes
•Certification: CE, FCC, RoHS
