TP-Link AX3000 Indoor/Outdoor WiFi 6 Access Point - Superior Wi-Fi 6 Speeds Up to 3Gbps, Higher Network Efficiency with OFDMA and MU-MIMO, 160MHz Bandwidth Channel, Long Range Coverage, Omada Mesh Technology, 48V Passive PoE Powered, Centralized Cloud Management, IP67 Weatherproof Enclosure, 2.4GHz and 5GHz Frequency, Retail Box, 6 Months Warranty.

Product Overview

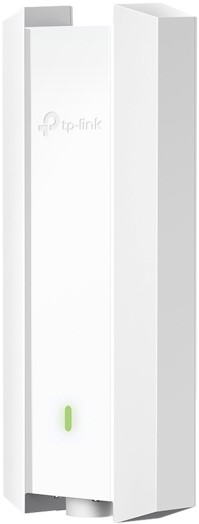

TP-Link EAP650-Outdoor AX3000 WiFi 6 AP Weatherproof IP67-rated with 1x Gigabit Ethernet (802.3at/Passive PoE, adapter included); dual-band (2.4/5 GHz) up to 3000 Mbps AX speeds, MU-MIMO, OFDMA, and 250+ clients for high-density coverage. Advanced features like Omada Mesh, seamless roaming, band steering, 16 SSIDs, captive portal, WPA3 security, and centralized cloud/app management via Omada SDN controllers. Rugged build (280.4×106.5×56.8 mm) handles -30–70°C extremes; includes mounting kits—perfect for outdoor pole/wall installs with auto-channel and QoS.

Specifications

•Product Code: EAP650 OUTDOOR
•Description:

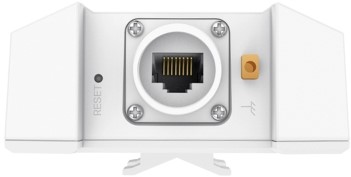

•Interface: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
•Button: Reset
Power Supply
•802.3at PoE
•48V Passive PoE (PoE Adapter Included)
Max. Power Consumption
•EU: 12.5W (802.3at PoE or Passive PoE)
•US: 14.7W (802.3at PoE or Passive PoE)
•Dimensions ( W x D x H ): 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna
•2.4 GHz: 2× 4 dBi
•5 GHz: 2× 5 dBi
•Weatherproof Enclosure: IP67

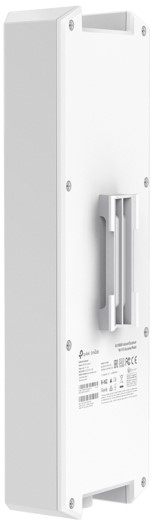

•Mounting: Pole/Wall Mounting (Kits included)
•Concurrent Clients: 250+6
•Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
•Frequency: 2.4 GHz, 5 GHz
Signal Rate
•802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
•802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
•802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11b: 1, 2, 5.5, 11 Mbps
•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions
•1024-QAM
•4× Longer OFDM Symbol
•OFDMA
•Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
•Enable/Disable Wireless Radio
•Automatic Channel Assignment
•Transmit Power Control (Adjust Transmit Power on dBm)
•QoS (WMM)
•MU-MIMO

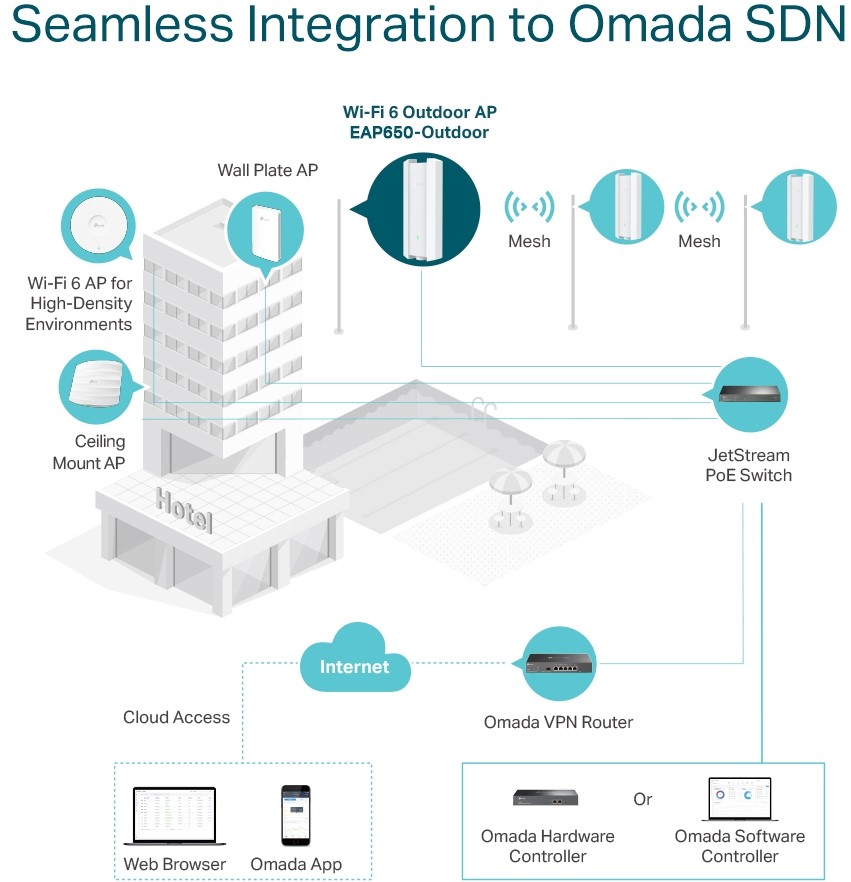

•Omada Mesh3
•Seamless Roaming3
•Band Steering
•Load Balance
•Airtime Fairness
•Beamforming
•Rate Limit
•Reboot Schedule
•Wireless Schedule
•Wireless Statistics based on SSID/AP/Client

Wireless Security
•Captive Portal Authentication3
•Access Control
•Wireless Mac Address Filtering
•Wireless Isolation Between Clients
•SSID to VLAN Mapping
•Rogue AP Detection
•802.1X Support
•WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
•CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
•FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)

•Email Alerts: Yes
•Management MAC Access Control: Yes
•SNMP: v1, v2c
•System Logging Local/Remote Syslog: Yes
•SSH: Yes
•Web-based Management: Yes
•L3 Management: Yes
•Multi-site Management: Yes
•Management VLAN: Yes
•Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

•System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
