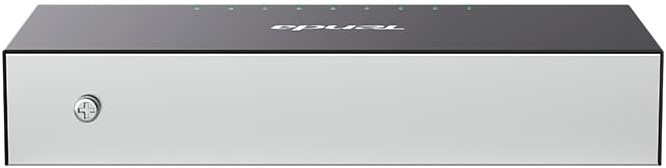

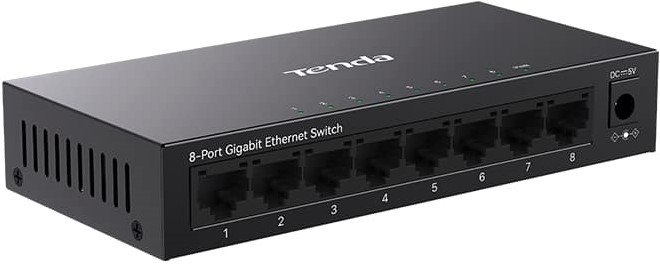

Tenda 8-port Gigabit Desktop Switch - is a high-performance 8-port full Gigabit Ethernet switch designed for Tenda's high-speed cascading scenarios for small and medium-sized surveillance, small and medium-sized business-es. Designed with a mini steel shell, it does not take up space and has a strong heat dissipation. Provides 8*10/100/1000 Mbps auto-negotiation ports, which increases transmission rate by 10 times, improves large file forwarding rate, and effectively solves problems such as video jams and picture loss in high-definition surveillance environments.

Product Overview

The Tenda compact 8-port Gigabit Ethernet switch supports IEEE 802.3 standards with a 16 Gbps switching capacity and 12 Mpps forwarding rate, ensuring efficient and reliable network performance. Designed with a durable metal casing, it supports both desktop and wall mounting while consuming less than 3W of power for energy-efficient operation. Ideal for small office and home networks, it features power and link/activity LEDs for easy status monitoring and complies with FCC, CE, and RoHS certifications.

Features

•Desktop mounting & Wall mounting
•Durable metal casing and exquisite design
•8 Gigabit Auto-Negotiation RJ45 ports

Specifications

•Product Code: TE-TEG1008M
•Description: Tenda 8-port Gigabit Desktop Switch
•Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator
•Power
•Link/Act
•Interfaces: (8) 1GE RJ45 ports
•Transmission media: Recommended: CAT5/5e UTP or better
•Dimensions: 140mm*66mm*25mm
•Material: Metal
Level of protection
•Port: N/A
•Power：N/A
•Forwarding mode: Store-and-forward
•Switch capacity: 16Gbps
•Forwarding rate: 12Mpps
•Power method: 100-240V AC 50/60Hz
•Power consumption: Max:<3W
Mounting
•Desktop mounting: support
•Wall mounting: support
Environment
•Operating Temperature: 0℃~45℃
•Storage Temperature: -40℃~70℃
•Operating Humidity: 10%~90% non-condensing
•Storage Humidity: 5%~90% non-condensing
•Certifications: FCC, CE, RoHS
