Tenda SOHO Fast Ethernet switches offer plug-and-play simplicity, reliability for your small office or home/office network. They come in plastic and Compatible with computer, printer, smart TVs, NAS, smart game console, IP-cameras, Tenda SOHO 10/100M switches makes your home network fun & easy.

Product Overview

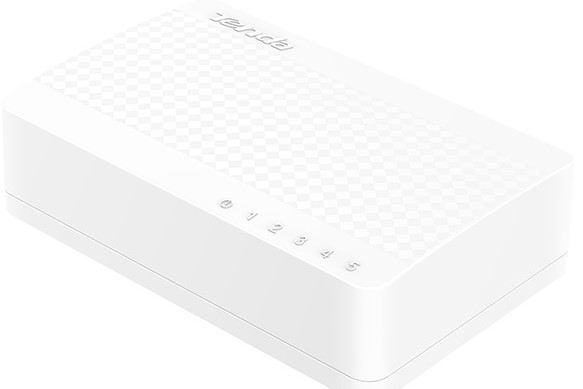

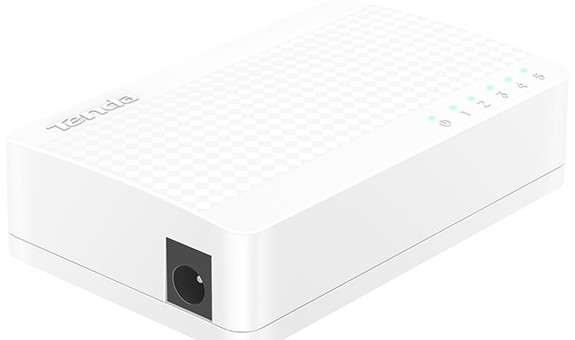

The Tenda SOHO 10/100M Ethernet Switch is a compact and stylish 5-port switch designed for easy, intuitive plug-and-play setup, ideal for both tech enthusiasts and first-time users. It features store-and-forward switching, MAC address auto-learning and aging, and supports long-distance data transfer with stable, high-speed performance. With desktop and wall mounting options, low power consumption, and robust ESD protection, it seamlessly fits into any home or office environment.

Features

•Desktop mounting & Wall mounting
•Equipped with plastic shell,Mini and fashionable design

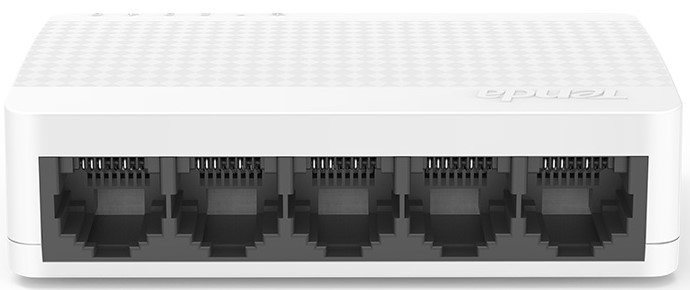

•5×10/100Mbps RJ-45 ports

Specifications

•Product Code: TE-S105
•Description: Tenda 5-port Ethernet Switch
•Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
•LED Indicator: 1* Power, 5* Link/Act
•Interfaces: 5*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
•Transmission media: Recommended: CAT5/5e UTP or better
•Dimension: 82.0mmx52.0mmx22.3mm
•Material: Plastic
•Level of protection
ESD:
•Air discharge: ±8kV
•Contact discharge: ±6kV
•Forwarding mode: Store-and-forward
•Switch capacity: 1.0Gbps
•Packet forwarding rate: 0.74Mpps
•Buffer: 448K
•MAC address table: 1K
Power
•Input: 100-240V AC 50/60Hz
•Output: 5.0V 0.6A ( External Power Adapter )
•Power consumption: Max:<1.6W
Mounting
•Desktop mounting: support
•Wall mounting: support
•Rack mounting:non-support
Environment
•Operating temperature: 0°C - 45℃
•Storage temperature: -40°C - 70°C
•Operating humidity: (10% - 90%) RH, non-condensing
•Storage humidity: (5% - 90%) RH, non-condensing
•Certification: CE, FCC, RoHS
•Protocols: CDMA/CD
•MAC address learning: Auto-Learning and Auto-Aging
•Funtions: plug-and-play
