Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE Plus - 8× Gigabit PoE+ ports , and 2× Gigabit Uplink Ports, Auto Negotiation, Auto MDI/MDIX Interfaces, 1 to 8 PoE Ports, 111W Power Supply, Fanless, Physical Security Lock, 16KB Jumbo Frame, 20Gbps Switching Capacity, 4K MAC Address Table, Store and Forward Transfer Method, 14.88Mbps Packet Forwarding Rate, -10℃~40℃ Operating Temperature, Retail Box, 6 Months Warranty.

Product Overview

Mercusys 10 Port Gigabit Desktop Switch Compact fanless Gigabit PoE+ switch with 8x 10/100/1000 Mbps PoE+ ports (111 W total) and 2x Gigabit uplinks, supporting IEEE 802.3af/at and store-and-forward switching for reliable small-office deployments. Advanced features include Extend, Priority and Isolation modes, PoE auto-recovery, jumbo frame support (16 KB), 4K MAC table and 20 Gbps switching capacity (14.88 Mpps). Durable, lockable metal housing with external 54 VDC adapter, low idle power and thermal specs ideal for access-point, IP camera, and VoIP edge installations.

Features

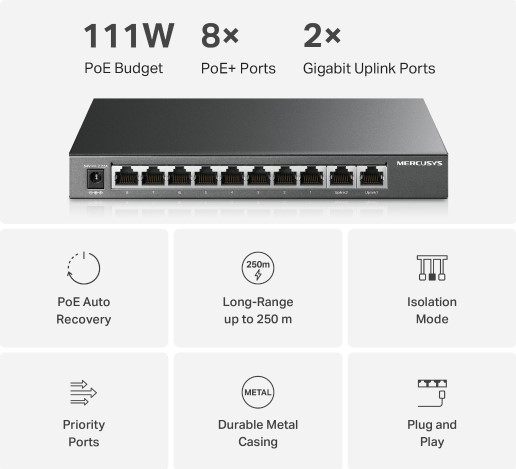

•10 Gigabit Ports: 8× Gigabit PoE+ ports , and 2× Gigabit Uplink Ports
•High Power PoE+: Support PoE Power up to 30 W for each PoE port and 111 W for all PoE ports.* Works with IEEE 802.3af/at compliant PDs.

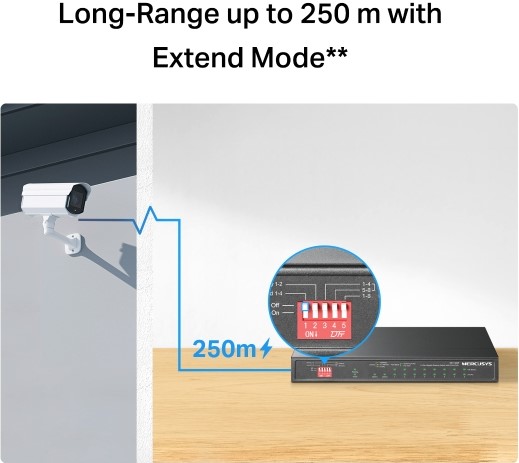

•Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode

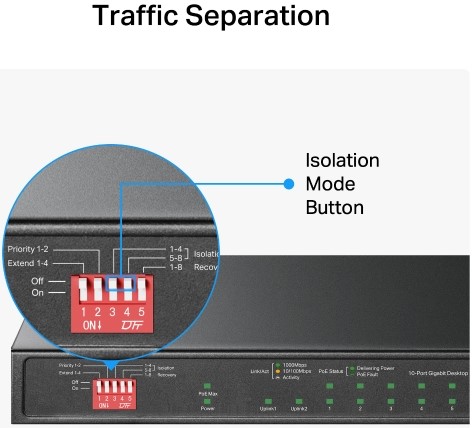

•Isolation Mode: One click to divide traffic for specific ports for stability and security

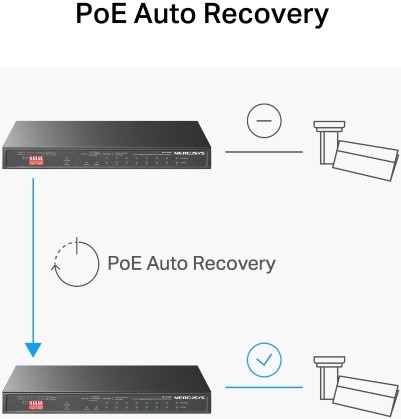

•PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
•Priority Mode: Ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

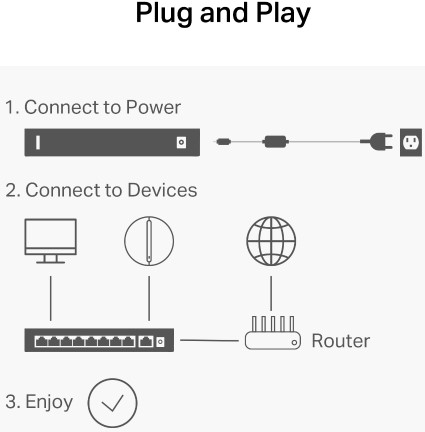

•Plug and Play: Simple to use and saves time and effort

Specifications

•Product Code: MS110GMP
•Description: Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE+
Hardware
•Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
•Dimensions: 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
PoE RJ45 Ports
•Standard: 802.3 af/at compliant
•PoE Ports: Ports 1–8
•Power Supply: 111 W
Interfaces
•8× 10/100/1000 Mbps PoE+ Ports
•2× 1000 Mbps RJ45 Ports
•AUTO Negotiation
•AUTO MDI/MDIX
Network Media
•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•External Power Supply: External Power Adapter (Output: 54VDC / 2.22A)
•Fan Quantity: Fanless
•Physical Security Lock: Yes
•Jumbo Frame: 16 KB
•Switching Capacity: 20 Gbps
•MAC Address Table: 4K
Max Power Consumption
•7.37 W (220V / 50Hz with no PD connected)
•129.4 W (220V / 50Hz with 111 W PD connected)
Max Heat Dissipation
•441.39 BTU/h (110V / 60Hz with 111 W PD connected)
•439.96 BTU/h (220V / 50Hz with 111 W PD connected)

Software
•Transfer Method: Store-And-Forward
Advanced Features
•Compatible With IEEE 802.3af/at Compliant PDs
•Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
•Priority Mode Button (Ports 1–2)
•Isolation Mode Button (Ports 1–4 / 5-8)
•PoE Auto Recovery (Ports 1-8)
•MAC Address Auto-Learning and Auto-Aging
•IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

•Packet Forwarding Rate: 14.88 Mpps
•Operating Temperature: -10℃~40℃ (14℉~104℉)
•Storage Temperature: -40–70 ℃ (-40–158 ℉)
•Operating Humidity: 10–90% RH non-condensing
•Storage Humidity: 5–90% RH non-condensing
