Mercusys Gigabit Rackmount Switch - 24 x Gigabit PoE+ Ports, 2 x Gigabit Uplink Ports, And 2 x Gigabit SFP Slots, Support PoE Power Up to 30W Per Port, 295W For All PoE Ports, Up to 250 Metres Transmission Distance, Isolation Mode, Priority Mode, PoE Auto Recovery, Plug and Play, Retail Box, 6 Months Warranty.

Product Overview

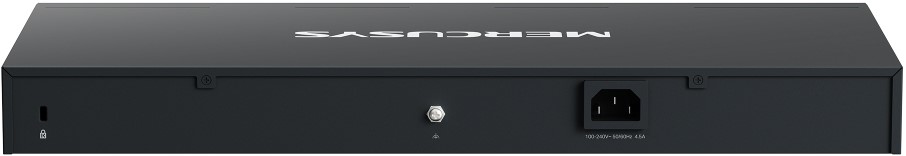

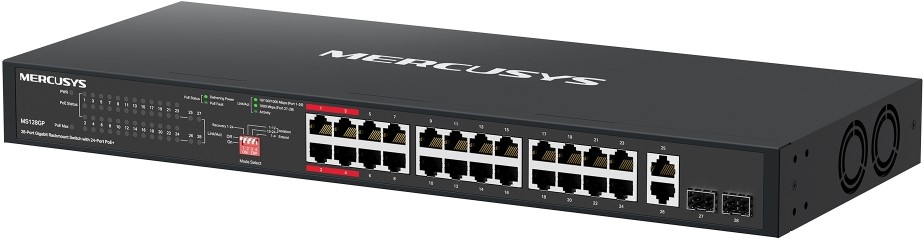

Mercusys MS128GP 24-Port Gigabit PoE+ Switch Powers up to 24 IEEE 802.3af/at PDs with a 295W budget (30W per port), 56Gbps switching capacity, and Gigabit speeds via 24 PoE+ RJ45 ports, 2 uplink RJ45, plus 2 SFP slots for flexible deployments. Advanced features include Extend Mode (up to 250m PoE/data), Priority/Isolation modes, PoE Auto Recovery, 8K MAC table, and store-and-forward with IEEE802.3x flow control—ideal for IP cameras, VoIP, or WiFi APs. Rugged 1U rackmount design (440x180x44mm) with 2 fans, physical lock, dual-voltage power (max 350W), and certifications (CE, RoHS); operates reliably from -10°C to 45°C.

Features

•Full Gigabit Ports: 24× Gigabit PoE+ ports, 2× Gigabit uplink ports, and 2× Gigabit SFP slots
•High Power PoE+: Support PoE Power up to 30 W for each PoE port and 295 W for all PoE ports.* Working with IEEE 802.3af/at compliant PDs
•Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
•Isolation Mode: One click to divide traffic for specific ports for stability and security
•Priority Mode: Guarantees the quality of sensitive applications like video monitor
•PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
•Plug and Play: No configuration or central management required

Specifications

•Product Code: MS128GP
•Description: Mercusys 28 Port Gigabit Rackmount Switch With 24 Port PoE+
•Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
•Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
PoE Ports
•Standard: compatible with 802.3af/at PDs
•PoE Ports: Ports 1–24, up to 30 W per port
•PoE Power Budget: 295 W
Interfaces
•24× 10/100/1000 Mbps PoE+ RJ45 Ports
•2× 10/100/1000 Mbps RJ45 Ports
•2× Gigabit SFP Slots
Transmission Medium
•10BASE-T: 2-pair UTP/STP of Cat. 3 or above (≤100 m)
•100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
•1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (≤100 m)
•1000BASE-X: MMF, SMF
•Fan Quantity: 2 Fans
•Physical Security Lock: Yes
•Switching Capacity: 56 Gbps
LED
•Power
•Link/Act
•PoE Status
•PoE Max
MAC Address Table: 8K
Max Power Consumption
•350.14 W (110V/60 Hz @ 25 °C, with 295 W PD connected)
•336.58 W (220V/50 Hz @ 25 °C, with 295 W PD connected)
Max Heat Dissipation
•1193.98 BTU/hr (110V/60 Hz @ 25 °C, with 295 W PD connected)
•1147.74 BTU/hr (220V/50 Hz @ 25 °C, with 295 W PD connected
•Transfer Method: Store and Forward
Advanced Features
•Compatible With IEEE 802.3at/af Compliant PDs
•Extend Mode (Up to 250m PoE power supply and data transmission)
•Priority Mode (Ports 1-4)
•Isolation Mode (Ports 1-12, 13-24)
•PoE Auto Recovery (Ports 1-24)
•MAC Address Auto-Learning And Auto-Aging
•IEEE802.3x Flow Control
•Certifications: CE, RoHS
Environment
•Operating Temperature: -10°C to 45°C (14°F to 113°F)
•Storage Temperature: -40°C to 70°C (-40°F to 158°F)
•Operating Humidity: 10% to 90% RH, non-condensing
•Storage Humidity: 5% to 90% RH, non-condensing
