GMKtec NucBox M3 Pro Intel Core I5 Professional Mini Desktop
Please login To View Quantity, Stock Availability And Pricing
- If No Stock Is Available In DBN and CPT, You Can Still Place An Online Order.
- Stock Will Be Shipped During The Bi-Weekly Branch Replenishments.
GMKtec NucBox M3 Pro Mini PC - 13th Gen Intel Core i5-13500H Processor, 12 Cores, 16 Threads, Intel 7 Process, Up to 4.7GHz Max Boost Clock, 18MB Cache, 16GB DDR4 2 x SO-DIMM 3200MT/s, Dual Channel Up to 64GB Max Support, 1TB M.2 2280 NVMe PCIe 3.0 SSD, Dual HDMI Plus Type-C Triple Display Output, Up to 4K Resolution, WiFi 6 at 120Mbps and Bluetooth 5.2 Connectivity, Windows 11 Pro, Retail Box, 1 Year Warranty.
Product Overview
The GMKtec NucBox M3 Pro is a compact mini PC powered by a 13th Gen Intel Core i5-13500H processor with 12 cores, 16 threads, and boost speeds of up to 4.7 GHz. It supports up to 64GB of dual-channel DDR4 memory, dual NVMe SSD storage, Intel Iris Xe graphics, and triple-display output at up to 4K resolution. With Wi‑Fi 6, 2.5G Ethernet, USB-C connectivity, and selectable 28W, 35W, and 40W power modes, it delivers flexible performance for home and office computing.
Specifications
•Product Code: G-M3PRO
•Description: GMKtec NucBox M3 Pro Mini PC
Processor
•CPU: 13th Gen Intel® Core™ i5-13500H
•12 Cores / 16 Threads
•Intel 7 Process, Max Boost Clock: 4.7 GHz
•18 MB Cache
Power Modes
•Silent Mode: 28W
•Balanced Mode: 35W
•Performance Mode: 40W (Peak 45W)
•Copper Pipe + Single Fan Cooling (Silent Design)
Graphic Processing Unit
•Intel® Iris® Xe Graphics
•Max Dynamic Frequency: 1.45 GHz
•80 Execution Units (EU)

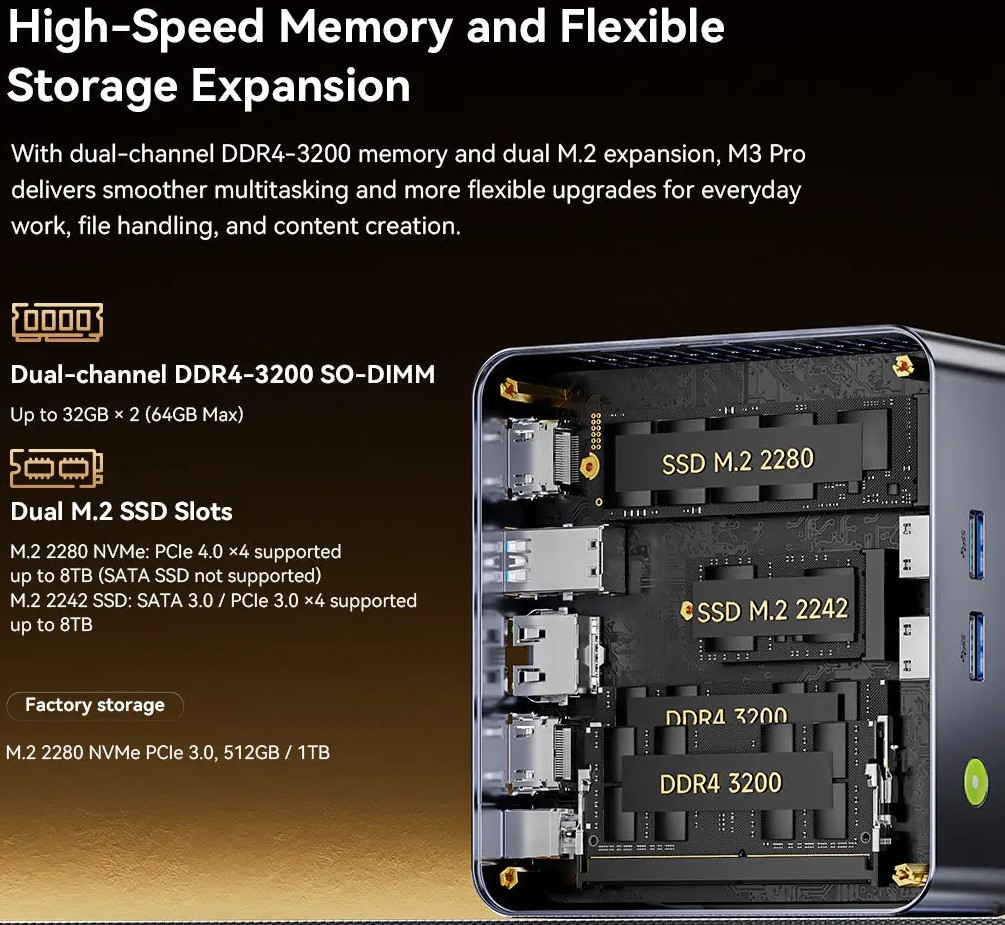

•Memory: 16GB DDR4 2 x SO-DIMM, 3200MT/s, Support Up to 64GB
•Storage: 1TB M.2 2280 NVMe PCIe 3.0
Expandable Storage
•M.2 2280 PCIe 4.0 ×4 up to 8TB (SATA SSD Not Supported)
•M.2 2242 supports SATA3.0 and PCIe3.0 ×4, up to 8TB
•Dual SSD Slots
Video Output
•Dual HDMI + Type-C Triple Display Output
•Supports up to 4K Resolution
Front I/O
•2× USB3.2 Gen2 Type-A (10Gbps)
•1× USB3.2 Gen2 Type-C (DP 4K@60Hz, no charging)
•1× 3.5mm Audio Jack (CTIA)
Rear I/O
•2× USB3.2 Gen1 Type-A (5Gbps)
•2× HDMI 2.0 (4K@60Hz)
•1× DC IN (5.5/2.5mm, 20V/5A)
•1× RJ45 2.5G LAN
•1× Lock Slot
•1× Power Button
Network
•Wi-Fi 6
•Max Speed: 1201 Mbps
•Bluetooth 5.2
Power
•Built-in Button Battery
•DC IN (5.5/2.5mm), 20V/5A, 100W
•Dimensions: 128.5 × 127 × 51 mm (Without Feet)
•OS Support: Windows 11 Pro / Ubuntu
