Decibell N3A Mini Desktop PC - 12th Gen Intel Core I9 12950HX Processor (30MB Cache, 3.60GHz Up to 5.00GHz, 8 Cores), 16GB DDR4 3200MT/s SO-DIMM Memory, 512GB M.2 2280 NVMe SSD, Intel UHD Graphics, Support Up to 4090 x 2304 Resolution @ 60Hz Frequency, Support WiFi 6 and Bluetooth 4.2 Built-in Connectivity, Windows 11 Pro 64-Bit, Retail Box, 1 Year Warranty.

Product Overview

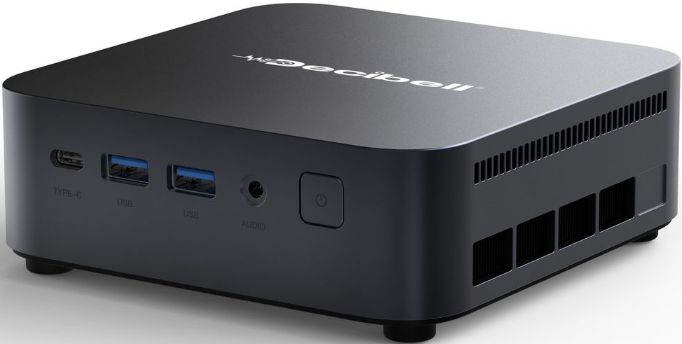

Decibell N3A Mini PC houses a desktop-grade 12th Gen Intel Core i9-12950HX (16 cores, 24 threads, up to 5.0 GHz) in a compact 128×128×41 mm plastic chassis (net 521.5 g) with VESA support for space-saving deployments. 16GB RAM Up to 64 GB DDR4 (2× SO‑DIMM, 3200 MT/s), dual M.2 (one NVMe 2280 + one M.2 2280 SATA/NVMe) 512GB Storage supporting SSDs up to 2 TB, Intel UHD graphics (1.3 GHz) and triple-display outputs (HDMI 2.0, DP1.4b, 10 Gbps USB‑C). Connectivity includes Wi‑Fi 6, Bluetooth, single Gigabit LAN, six USB 3.0 Type‑A ports, TPM 2.0, UEFI/diskless boot and Windows 11 Pro support — powered by a 19V/6.3A adapter, operating 0–40 °C.

Specifications

•Product Code: N3A-I9-16-512-PRO
•Description: Decibell N3A Mini PC
•Processor: Intel® Core™ i9-12950HX (12th Generation)
•Architecture: Alder Lake
•Process: Intel 7
•Segment: Mobile
•Total Cores: 16
•Performance Cores: 8
•Efficient Cores: 8
•Threads: 24
•Max Turbo Frequency: Up to 5.00 GHz
•Efficient Core Turbo: Up to 3.60 GHz
•Cache: 30 MB Intel® Smart Cache
•Base Power: 55 W
•Minimum Assured Power: 45 W
•Maximum Turbo Power: 157 W
•GPU: Intel® UHD Graphics (12th Gen)
•Graphics Frequency: Up to 1.30 GHz
•Maximum Resolution: 4096 × 2304 @ 60 Hz
•Multi-Display Support: Up to 3 Displays
•Display Outputs: HDMI 2.0 ×1, DisplayPort 1.4b ×1, USB Type-C ×1 (Display + Data)
•Memory: 16GB DDR4 SO-DIMM(Up to 64GB)
•Memory Speed: Up to 3200MT/s
•Storage: 512GB M.2 2280 NVMe SSD (Up to 2TB)
•Wi-Fi Module: M.2 E-Key
•Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 5 / Wi-Fi 6)
•Bluetooth: Bluetooth 4.2 / 5.2
•Ethernet: 1 × Gigabit Ethernet (10/100/1000 Mbps)
•SIM Support: Not Supported
I/O Ports
•USB 3.0 Type-A (5 Gbps): 6
•USB Type-C (10 Gbps + Display Output): 1
•HDMI 2.0: 1
•DisplayPort 1.4b: 1
•Gigabit LAN: 1
•DC Power Input: 1 (5.5 × 2.1 mm)
•3.5 mm Audio Combo Jack: 1
•Operating System: Windows 11 Professional
•Operating Temperature: 0°C to 40°C
•Storage Temperature: 20°C to 60°C
•Input Voltage: 100–240 V AC
•Frequency: 50/60 Hz
•Output: 19 V DC / 6.3 A
•Connector: DC Jack (5.5 × 2.1 mm)
