TP-Link Outdoor Dual Lens Pan/Tilt Security Camera - 2K 3MP Dual Lens, Wide-Angle & Telephoto Lens, Synchronized Smart Tracking, One-Tap Smart Focus, IP66 Weather Resistance, Ethernet Support, Free AI Detection & Notification, Work with Alexa, Google Assistant & Samsung Smart Things, Smart Night Vision, Secure Local (Up to 512 MicroSD Card) or Cloud Storage, 2-Way Audio Communication, Retail Box, 6 Months Warranty.

Product Overview

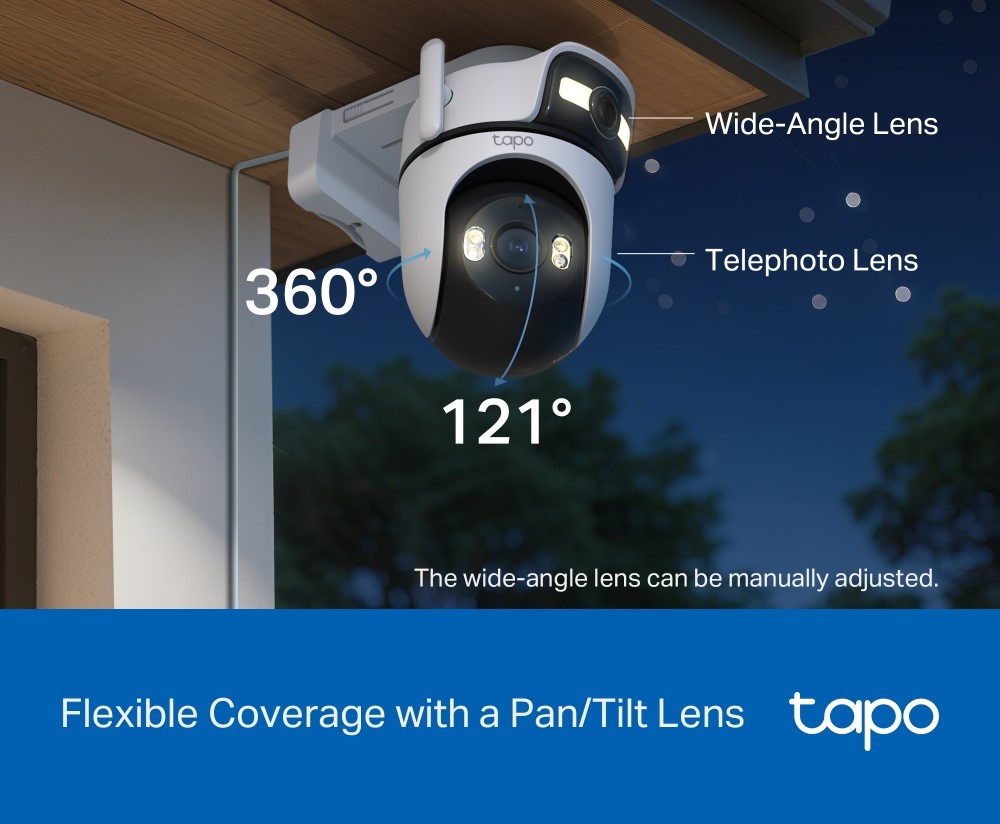

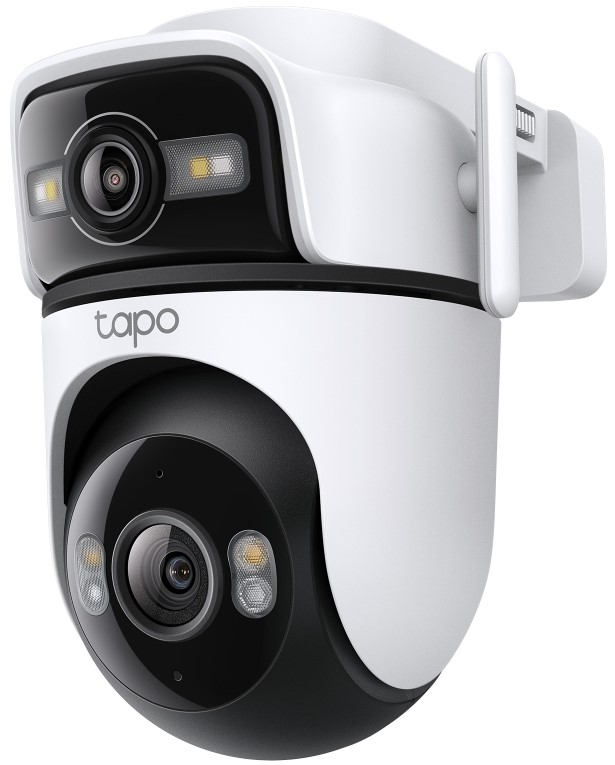

TP-Link Tapo C545D: Dual 2K Outdoor Pan‑Tilt Security Camera Dual 2K 3MP lenses (wide 165° + telephoto 66.5°) on a 1/2.8” progressive CMOS sensor deliver sharp day/night coverage with color night vision, 99 ft IR range, and IP66‑rated weatherproofing for wall, eave, or pole mounting. AI‑powered detection for people, pets, vehicles, line‑crossing, and tampering triggers activity zones and snapshot notifications, supported by 512 GB microSD, Tapo Care cloud, two‑way audio with noise cancellation, and a 99 dB siren. Wired via 10/100 Ethernet or Wi‑Fi 6 (2.4 GHz), with RTSP/ONVIF, AES‑128 encryption, and compatibility with Google Assistant, Alexa, and Samsung SmartThings, ideal for high‑reliability home or small‑business security.

Specifictions

•Product Code: TAPO C545D

•Description: Outdoor Dual Lens Pan/Tilt Security Camera

•Image Sensor: 1/2.8“ Progressive Scan CMOS Sensor

Lens

•Focal Length: 6 mm ± 5%, 2.53 mm±5%

•Aperture: F1.6 ± 10%, F1.6 ± 10%

•Field of View: 66.5° (Diagonal), 57.3° (Horizontal), 31.7° (Vertical);

•165.1° (Diagonal), 137.6° (Horizontal), 73.0° (Vertical)

•Night Vision: 850 nm IR LED (99 ft / 29.9 m), Color Night Vision

•Day/Night Switch: IR-Cut Filter with Auto-Switching

Interface & Button

•1× RJ45 (10M/100M) Ethernet Port

•1× RESET Button

•1× microSD Card Slot (Up to 512 GB)

VIDEO & AUDIO

•Maximum Resolution: 2K 3MP (2304 x 1296 px) + 2K 3MP (2304 x 1296 px)

•Frame Rate: 15 fps

•Video Compression: H.264

•Live View: Yes

•Image Enhancement: 3DNR, WDR

•Audio Input & Output: Built-in Microphone and Speaker

•Audio Communication: Two-Way Audio with Noise Cancellation

•Siren Volume: 99 dB (Level measured at 4-inch/10-cm distance)

Storage

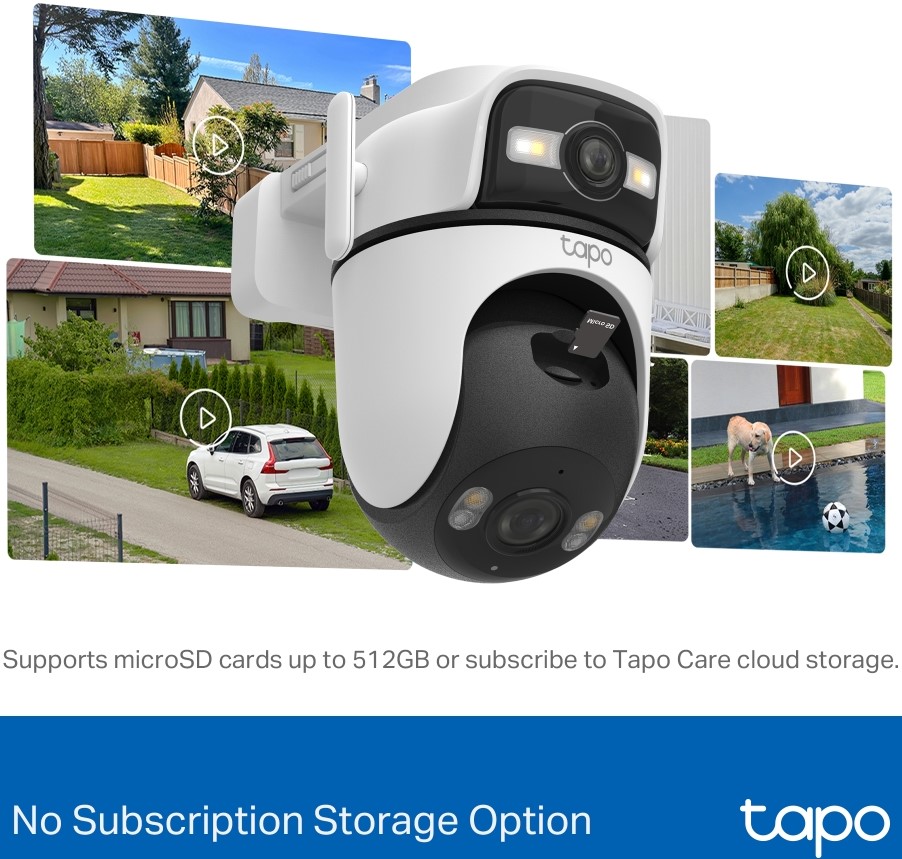

•Local Storage: microSD Card Slot on Camera (Up to 512 GB)

•Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)

Detection And Notification

AI Detection

•Motion Detection

•Person Detection

•Pet Detection

•Vehicle Detection

•Line-Crossing Detection

•Camera Tampering

•Activity Zones: Yes

•Output Notification: System Notification with Snapshot (Tapo Care Services)

Network

•Network Connectivity: Connect via Wi-Fi or Ethernet

•Wireless Connectivity: IEEE 802.11 b/g/n/ax, 2.4 GHz

•Protocol: TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP

•Ethernet Port: Yes

•RTSP: Yes

•ONVIF: Yes

Transmission Rate

•11b: 11 Mbps

•11g: 54 Mbps

•11n: 72.2 Mbps

•11ax: 143.4 Mbps

Security

•On-Device Machine Learning

•128-bit AES Encryption with SSL/TLS

•WPA/WPA2-PSK/WPA3

Power

•Power Source: 12 V DC Power Adapter

•Input Voltage: 100-240 V, 50/60 Hz

•Output Voltage: 12 V, 1 A (DC Power)

•DC Power Connector Size: Inside Ø: 2.1 mm, Outside Ø: 5.5 mm

•Power Cord Length: 3 m

•Typical Power Consumption: 5.3 W

•Maximum Power Consumption: 11.2 W
