TP Link EAP610 Indoor or Outdoor WiFi 6 Access Point - Superior WiFi 6 Speeds Up 1800Gbps, 2.4GHz and 5GHz Frequency, 1 x Gigabit Ethernet RJ-45 Port Support 802.3at PoE and Passive PoE, 2.4GHz: 2 x 4dBi Antenna, 5GHz: 2 x 5dBi Antenna, IP67 Weatherproof Enclosure, Access Control, Rogue AP Detection, Wireless Security, Omada App, Cloud Access, Pole or Wall Mounting, -30–70 ℃ (-22–158 ℉) Operating Temperature, Retail Box, 6 Months Warranty.

Product Overview

The Outdoor-ready AX1800 Wi‑Fi 6 access point delivers robust dual‑band performance (up to 1201 Mbps on 5 GHz) with enterprise features like OFDMA, MU‑MIMO, 1024‑QAM, and support for 250+ concurrent clients. IP67 weatherproof enclosure, included passive PoE and 802.3at PoE support, and pole/wall mounting make deployment simple for harsh environments. Centralized Omada management (cloud, hardware, or software controllers), seamless roaming/mesh, and rich security (WPA3, 802.1X, captive portal, VLANs) suit high-density outdoor networks.

Specifications

•Product Code: EAP610 OUTDOOR
•Description: AX1800 Indoor/Outdoor WiFi 6 Access Point
Hardware Features

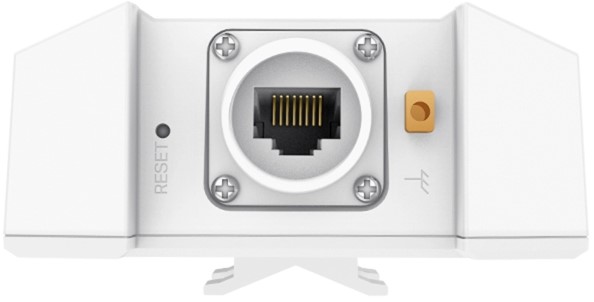

•Interface: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
•Button: Reset
Power Supply
•802.3at PoE
•48V/0.5A Passive PoE (PoE Adapter Included)
Max. Power Consumption
•EU: 13.2W (802.3at PoE or Passive PoE)
•US: 14.7W (802.3at PoE or Passive PoE)
•Dimensions ( W x D x H ): 11× 4.2× 2.2 in (280.4× 106.5× 56.9 mm)
Antenna
•2.4 GHz: 2× 4 dBi
•5 GHz: 2× 5 dBi
•Weatherproof Enclosure: IP67
•Mounting: Pole/Wall Mounting (Kits included)
Wireless Features
•Concurrent Clients: 250+△
•Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
•Frequency: 2.4 GHz, 5 GHz
Signal Rate
•802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
•802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
•802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11b: 1, 2, 5.5, 11 Mbps
•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions
•1024-QAM
•4× Longer OFDM Symbol
•OFDMA
•Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
•Enable/Disable Wireless Radio
•Automatic Channel Assignment
•Transmit Power Control (Adjust Transmit Power on dBm)
•QoS (WMM)
•MU-MIMO
•Omada Mesh**
•Seamless Roaming**
•Band Steering
•Load Balance
•Airtime Fairness
•Beamforming
•Rate Limit
•Reboot Schedule
•Wireless Schedule
•Wireless Statistics based on SSID/AP/Client

Wireless Security
•Captive Portal Authentication**
•Access Control
•Wireless Mac Address Filtering
•Wireless Isolation Between Clients
•SSID to VLAN Mapping
•Rogue AP Detection
•802.1X Support
•WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
•CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
•FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)

Management Features
•Omada App: Yes
Centralized Management
•Omada Hardware Controller (OC300)
•Omada Hardware Controller (OC200)
•Omada Software Controller
Cloud Access: Yes, through
•OC300
•OC200
•Omada Software Controller

•Email Alerts: Yes
•Management MAC Access Control: Yes
•SNMP: v1, v2c
•System Logging Local/Remote Syslog: Yes
•SSH: Yes
•Web-based Management: Yes
•L3 Management: Yes
•Multi-site Management: Yes
•Management: VLAN Yes
•Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller
