TP-Link AC867 Omada Long-Range Indoor/Outdoor Wireless Bridge - 3 x Gigabit Ethernet Ports, Internal 2×2 Dual-polarized Directional MIMO Antennas, IP65 Weatherproof Enclosure, 5000m(16400ft) Coverage, IEEE 802.11 a/n/ac Wireless Standards, 5GHz Frequency, Up to 867Mbps Signal Rate, Wireless Encryption, Omada App, Restore And Backup Data, Firmware Update Via Web, Lightning Protection, CE, FCC, RoHS Certification.

Product Overview

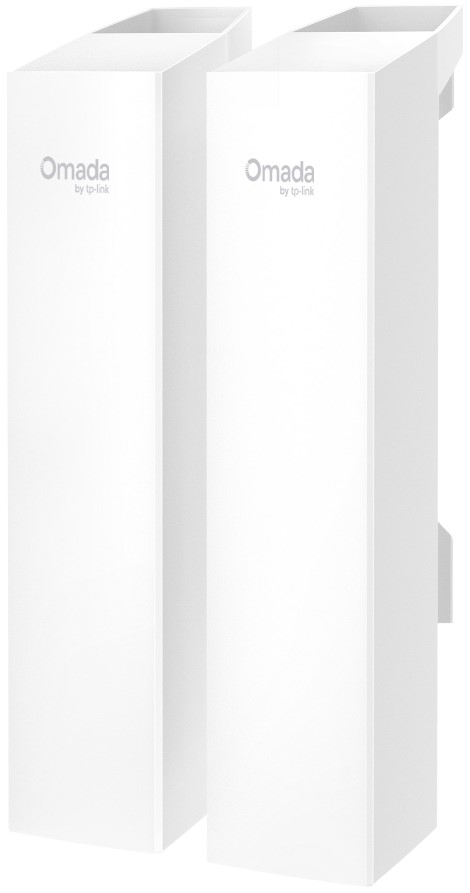

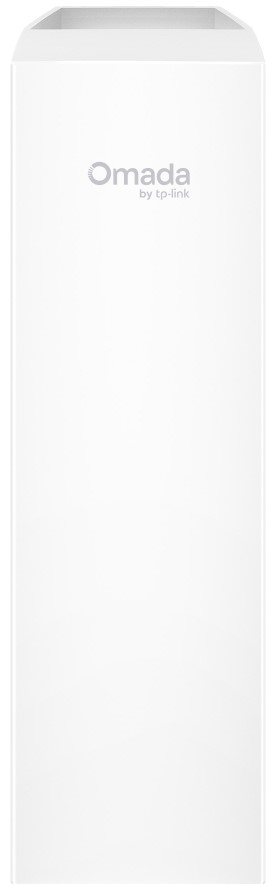

TP-Link Omada EAP215-Bridge: 5GHz Long-Range Wireless Achieve up to 867Mbps on 802.11ac with 14dBi dual-polarized MIMO antennas and 5000m coverage—perfect for point-to-point bridging via 3 Gigabit Ethernet ports, IP65 weatherproof enclosure, and pole/wall mounting. Advanced features like MU-MIMO, 8 SSIDs, VLAN/rogue AP detection, rate limiting, and Omada SDN central/cloud management (app/controller) with ZTP, SNMP, and email alerts for scalable deployments. Rugged design survives -40°C to 70°C extremes, 11.5W PoE power (802.3af/24V passive), lightning protection, and certifications (CE/FCC/RoHS) ensure reliable outdoor performance in harsh SA conditions.

Specifications

•Product Code: EAP215-BRIDGE KIT
•Description: TP-Link Omada Long-Range Indoor/Outdoor Wireless Bridge

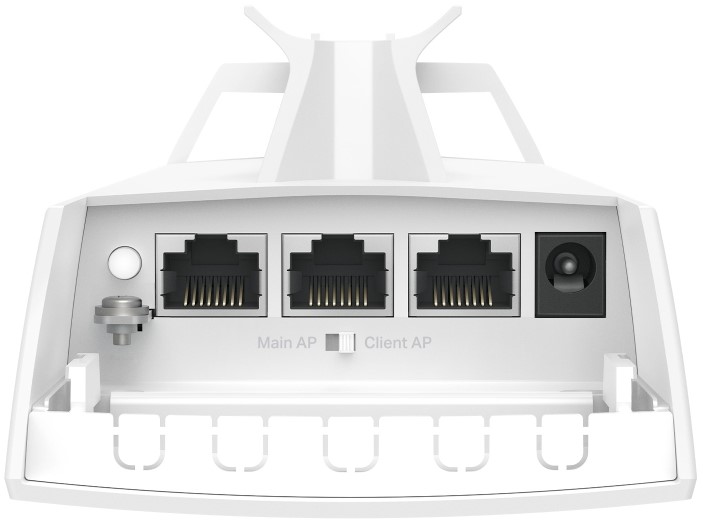

•Interface: 3x Gigabit Ethernet Ports
•Button: Reset
•DIP Switch: Role Switch
•Power Supply: 12V DC / 802.3af PoE / 24V Passive PoE
•Max. Power Consumption: 11.5W
•Dimensions ( W x D x H ): 10.9 × 3.1 × 2.4 in (276 × 79 × 60 mm)
Antenna
•Internal 2×2 Dual-polarized directional MIMO antennas
•5 GHz: 14.0 dBi
•Horizontal:43°, Vertical: 18°
•Weatherproof Enclosure: IP65

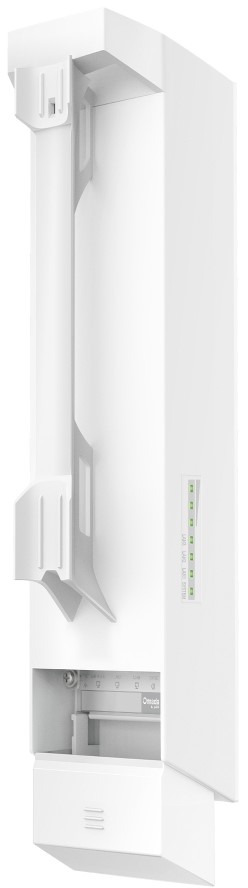

•Mounting: Pole and wall mounting ( Pole accessories included)

•Coverage: 5000m(16400ft)
•Wireless Standards: IEEE 802.11 a/n/ac
•Frequency: 5 GHz
•Signal Rate: 5 GHz: Up to 867 Mbps
Wireless Functions
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• Static IP/Dynamic IP
• Rate Limit
• Guest Network
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
Wireless Security
• VLAN
• Rogue AP Detection
• Maximum number of MAC Filter: 4,000
• Wireless Encryption
Transmission Power
CE:
•<23dBm (5 GHz, band 1/2, EIRP)
•<30dBm (5 GHz band3, EIRP)
FCC:
•<23.5dBm (5 GHz band1)
•<25dBm (5 GHz band4)
•Omada App: Yes
•Restore & Backup: Yes
•Firmware update via Web: Yes
•NTP: Yes
Centralized Management
•Omada Hardware Controller
•Omada Software Controller
•Omada App
•Cloud Access: Yes. Require the use of an Omada Controller.
•Email Alerts: Yes
•LED ON/OFF Control: Yes
•SNMP: Yes
•SSH: Yes
•Web-based Management: Yes
•Zero-Touch Provisioning: Yes
