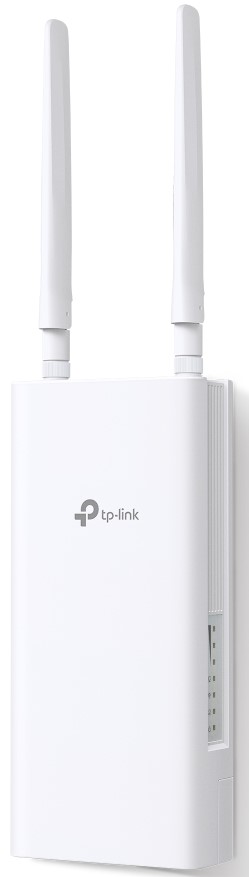

TP-Link 4G 300 Mbps Wi-Fi Outdoor Router - 4G LTE Up to 150Mbps and Wi-Fi Up to 300Mbps on 2.4GHz, Nano Sim Card Slot, 1 x 100Mbps WAN/LAN Port Interface, 2 x Detachable LTE Antennas, DoS, IPv4 SPI Firewall, IP and MAC Address Binding Security, Local and Remote Management, IPv4 and IPv6 Protocols, Wireless Security, Server, DHCP Client List, Address Reservation, -30°C~60°C (-22°F~140°F) Operating Temperature, Retail Box, 6 Months Warranty.

Product Overview

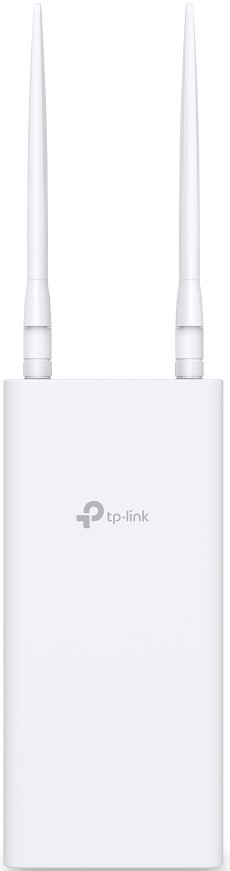

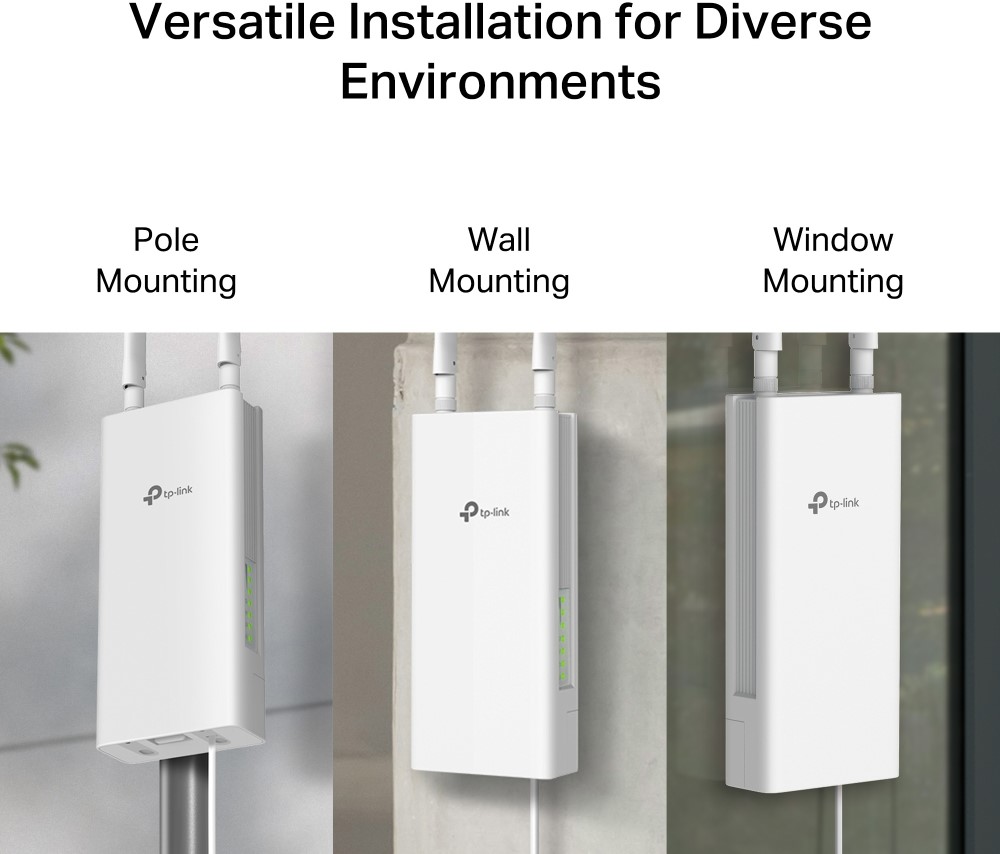

TP-Link 4G LTE Outdoor Router Unlock 150 Mbps downloads and 50 Mbps uploads via 4G FDD-LTE/TDD-LTE bands (B1/3/5/7/8/20/28/38/40/41) with Nano SIM support and 300 Mbps 2.4 GHz Wi-Fi. Rugged IP65-equivalent design (8.9 x 3.9 x 2.2 in) withstands -30°C to 60°C temps, powered by 12V DC or Passive PoE, with detachable antennas for pole/wall mounting. Advanced features include 3G/4G router modes, guest networks, port forwarding, Dynamic DNS, firewall security, and app/web management for seamless remote access.

Specifications

•Product Code: Archer MR402-Outdoor
•Description: TP-Link 4G 300 Mbps Wi-Fi Outdoor Router
Network Type
4G
•FDD-LTE: B1/B3/B5/B7/B8/B20/B28
•(2100/1800/850/2600/900/800/700 MHz)
•TDD-LTE: B38/B40/B41
•(2600/2300/2500 MHz)
•3G: DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz)
Speed
•Download Speed 150Mbps
•Upload Speed 50Mbps
•SIM Type: 1×Nano SIM Card

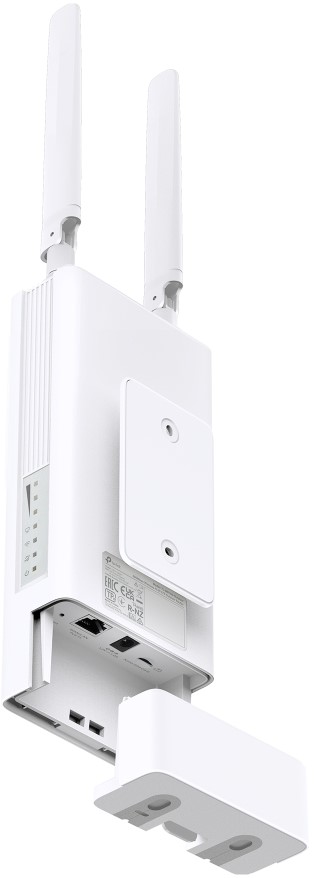

Interface
•1× 100 Mbps WAN/LAN Port (PoE In)
•1× Nano SIM Card Slot
•1 × DC Port
•Buttons: 1× Reset Button

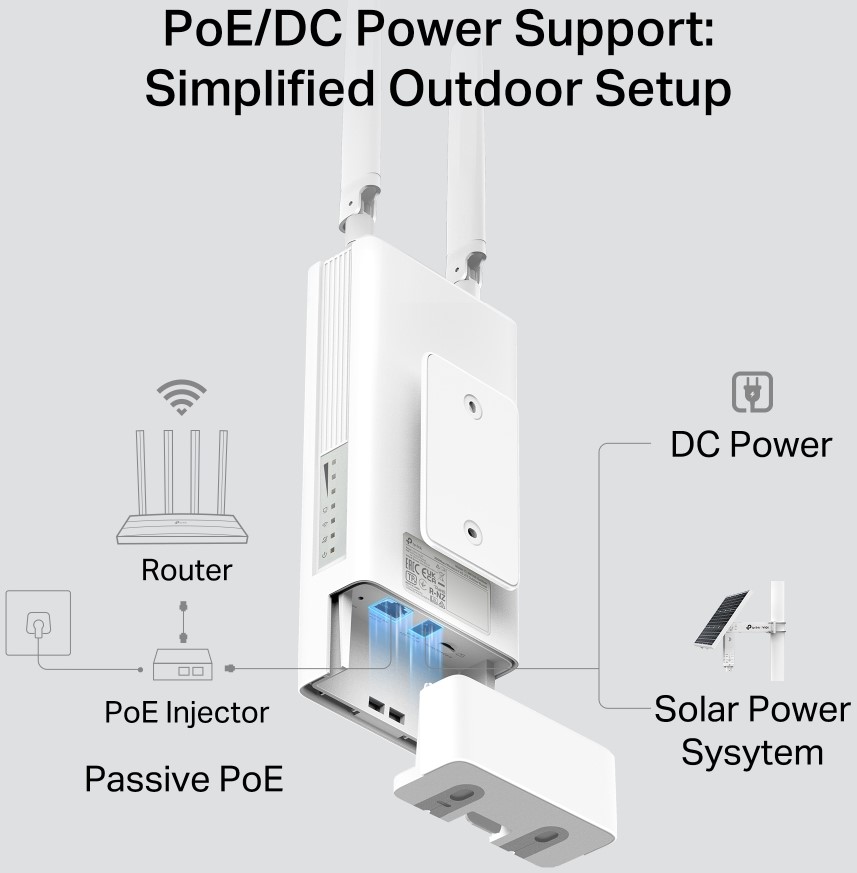

Power
•12V/1A DC
•4V/0.5A Passive PoE
•44-57V/0.35A 802.3af
•Dimensions (W x D x H): 8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm)
•Antennas: 2 × Detachable LTE Antennas
•Wireless Standards: IEEE 802.11b/g/n
•Frequency: 2.4 GHz
•Signal Rate: 300 Mbps
Reception Sensitivity
•11g 54M: -74 dBm
•11n HT20: -73 dBm
•11n HT40: -70 dBm
•Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
•Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Software Features
•Security: DoS, IPv4 SPI Firewall, IP and MAC Address Binding
•Operating Modes: 3G/4G Router, Wireless Router
•WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
•Management Features: Local Management, Remote Management
•DHCP: Server, DHCP Client List, Address Reservation
•Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
•Dynamic DNS: TP-Link, DynDns, NO-IP
•Protocols: IPv4, IPv6
•Guest Network: 2.4 GHz guest network
•Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

•Requirements: Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
•Certifications: CE, RoHS
•Operating Temperature: -30°C~60°C (-22°F~140°F)
•Storage Temperature: -40°C~70°C (-40 °F~158 °F)
•Operating Humidity: 10%~90% RH
•Storage Humidity: 5%~90% RH
