TP-Link 300Mbps Wireless Network 4G LTE Router - 4G Wireless Router, IPv4, IPv6 Protocols, Nano Sim Card Slot, Local And Remote Management, 2.4GHz Frequency, 300Mbps Signal Rate, IEEE 802.11b/g/n Wireless Standards, 2 Detachable External 4G LTE Antennas, Wireless Security, Upgrade Firmware, Factory Default, System Log, Diagnostic Tools, Retail Box, 1 Year Warranty.

Product Overview

TP-Link TL-MR100 300Mbps 4G LTE Router Unlock blazing 4G LTE speeds up to 150 Mbps download—simply insert a nano SIM card (compatible in 100+ countries) and share seamless WiFi with up to 32 devices, no configs needed. Two detachable external LTE antennas ensure rock-solid connections for HD streaming, file downloads, and video calls, with fallback WiFi router mode via LAN/WAN port for wired flexibility. Compact at 154x114x36mm with 0–40°C operation, WPS security, and easy app-free management—ideal for home, travel, or remote work anywhere with cellular coverage.

Features

•Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

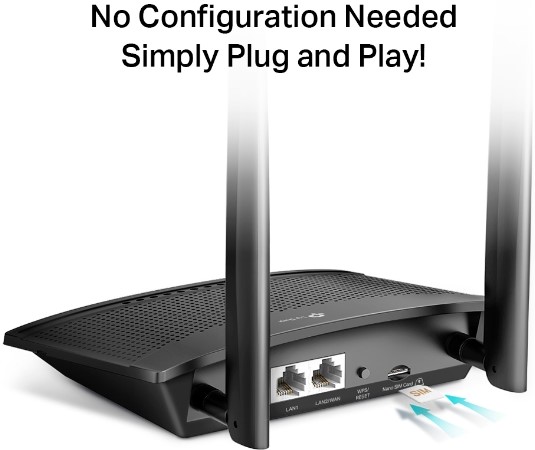

•Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
•Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
•Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

Specifications

•Product Code: ARCHER-MR100
•Description: TP-Link 300 Mbps Wireless N 4G LTE Router
Interface

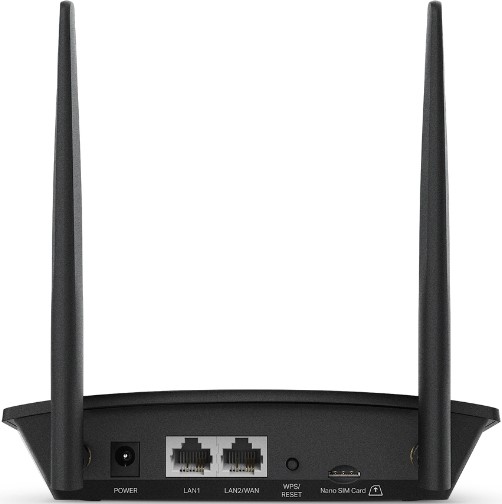

•1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
•1 Nano SIM Card Slot
•Button: WPS/Reset Button
•External Power Supply(EU): 9V/0.85A
•Dimensions ( W x D x H ): 6.06×4.49×1.42 in ( 154×114×36 mm)
•Antenna: 2 Detachable External 4G LTE Antennas
•Wireless Standards IEEE 802.11b/g/n
•Frequency: 2.4 GHz
•Signal Rate: 300 Mbps
Reception Sensitivity
•11g 54M: -74 dBm
•11n HT20: -71 dBm
•11n HT40: -68 dBm
•Transmit Power: < 20 dBm (2.4 GHz)
•Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
•Statistics
•WAN Failover: Yes
•Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type
•4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
•TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
•3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
•Security: IPv4 SPI Firewall, IP and MAC Address Binding
•Operating Modes: 3G/4G Router, Wireless Router
•WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
•Management: Local Management, Remote Management
•DHCP: Server, DHCP Client List, Address Reservation
•Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
•Dynamic DNS: DynDns, NO-IP
•Protocols: IPv4, IPv6
•Guest Network: 2.4 GHz Guest Network
•Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
•Certification: CE, RoHS
Requirements
•Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
•NetWare, UNIX or Linux
•Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
•Java-enabled browser
•Nano SIM Card
