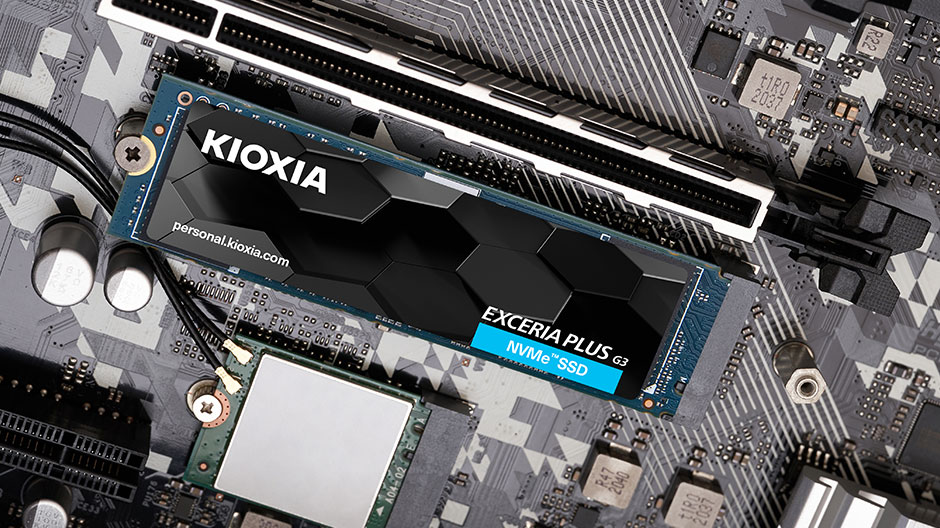

The KIOXIA EXCERIA PLUS G3 SSD series features a powerful PCIe 4.0 interface and delivers improved performance for gamers and video editors. With up to 2TB of capacity, this M.2 2280 single-sided series is excellent for mainstream desktops and notebooks that support the latest PCIe® 4.0 standard.

Product Overview

The KIOXIA EXCERIA PLUS G3 SSD series delivers high-performance storage with a PCIe 4.0 interface, offering sequential read/write speeds of up to 5,000/3,900 MB/s and random IOPS of 770,000/950,000 (1TB). Designed for gamers and video editors, it features BiCS FLASH NVMe 1.4 technology in a compact, single-sided M.2 2280 form factor, supporting up to 2TB capacity for mainstream desktops and notebooks. Its slim design enables easy motherboard installation, reducing cable clutter for sleek system upgrades.

Features

•BiCS FLASH™
•NVMe™ 1.4 Technology
•M.2 2280 Form Factor
•PCIe® Gen4 x4
•SSD Utility Management Software

Specifications

•Product Code: LSD10Z001TG8
•Description: EXCERIA PLUS G3 SSD 1TB
•Capacity: 1TB
•Form Factor: M.2 Type 2280-S4-M
•Interface: PCI Express® Base Specification Revision 4.0 (PCIe®)
•Flash Memory type: BiCS FLASH™ TLC
•Interface Maximum Speed: 64 GT/s (PCIe® Gen4x4)
•Dimension (Max: LxWxH): 80.15 x 22.15 x 2.63 mm
•Interface Protocol: NVM Express™ Base Specification 1.4
•Weight: 1TB: 7.0 g (typ.)
•Max Sequential Read Speed*1: 5,000 MB/s
•Max Sequential Write Speed*1: 3,900 MB/s
•Max Random Read Speed*2: 1TB: 770,000 IOPS
•Max Random Write Speed*2: 950,000 IOPS
•Endurance: TBW*3: 1TB: 600 TB
•MTTF: 1.5 million hours
•Operating Temperature: 0 ℃ (Ta) to 85 ℃ (Tc)
•Storage Temperature: -40 ℃ to 85 ℃
•Certification: RoHS compliant*5
•Shock Resistance: 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
•Vibration: 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
•Supply Voltage: 3.3 V ±5 %
•Power Consumption
•PS3: 50 mW (typ.)
•PS4: 5 mW (typ.)
•Power Consumption (Active): 1TB: 4.9 W (typ.)
