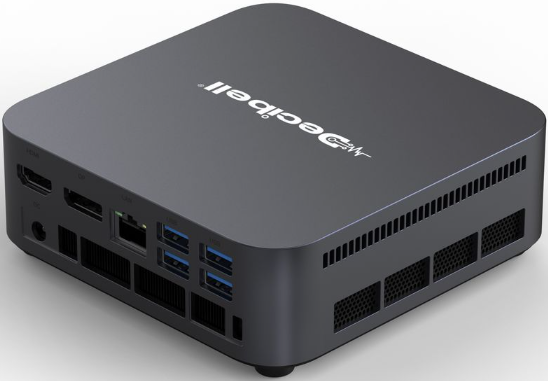

Decibell N3ES Mini Desktop PC - AMD Ryzen 7 8745HS Zen 4 (8 Cores, 16 Threads) Up to 5.1GHz Boost Clock, 3.6GHz Base Clock, L1 Cache 512KB, L2 Cache 8MB, L3 Cache 32MB Processor, 16GB DDR5 SODIMM Memory, 512GB M.2 2280 NVMe PCIe SSD, AMD Radeon Graphics, WiFi & Bluetooth 5.2 Connectivity, Windows 11 Pro, Retail Box, 1 Year Warranty.

Product Overview

Decibell Mini-PC AMD Ryzen 7, 8000 Series Zen 4 Dominating with 8-core/16-thread Ryzen 7 (Zen 4, 55W TDP, 32MB L3 cache) and Radeon Graphics (2200MHz), it handles intensive tasks via dual-channel DDR5 up to 64GB (4800MT/s) and dual M.2 2280 NVMe PCIe SSDs (up to 2TB total) + 2.5" HDD bay. Triple 4K display output (HDMI 2.0 + DP 1.4 + Type-C 40Gbps/4K), blazing 2.5G Ethernet, WiFi 6 + BT 5.2, 6x USB 3.1 Type-A, and robust BIOS (UEFI diskless boot, TPM 2.0, RTC/timed power-on) make it a networking powerhouse. Compact yet durable (0-45°C operation, 19V/6.3A universal PSU), with LED indicators and 3.5mm audio—ideal for DIY tech sales demos or streaming rigs.

Features

•Powerful Zen 4 Ryzen 8000 Series processor
•High-performance 12-core integrated Radeon GPU
•DDR5 memory with up to 64GB capacity
•Triple-display 4K output support
•Dual NVMe SSD slots for fast storage expansion
•2.5G LAN for high-speed networking
•Compact, high-performance mini workstation design

Specifications

•Product Code: N3ES-R7-8745-16-512
•Description: Decibell AMD Ryzen 7 Zen 4 Mini Desktop PC
•Operating System: Windows 11 Pro
Physical & Build
•Dimensions: 128 × 128 × 41.3 mm
•Case Material: PC + ABS
Processor (CPU)
•Series: AMD Ryzen 8000 Series
•Codename: Dragon Range
•Architecture: Zen 4
•Cores / Threads: 8 cores / 16 threads
•Base Clock: 3.6 GHz
•Max Boost Clock: Up to 5.1 GHz
Cache:
•L1: 512 KB
•L2: 8 MB
•L3: 32 MB
•TDP: 55W
•TPM: Integrated TPM 2.0
Graphics (GPU)
•Model: AMD Radeon™ Graphics
•Cores: 12-core GPU
•Frequency: 2200 MHz
Memory (RAM)
•Type: DDR5 SO-DIMM (Dual Channel)
•Installed: 16GB × 2 (32GB total)
•Speed: 4800 MT/s
•Maximum Capacity: Up to 64GB
Storage
•Installed: 512GB SSD
•Max Capacity: Up to 2TB
•Interface: 2 × M.2 2280 NVMe PCIe
•2.5" Drive Bay: Not supported
•TF Card Slot: Not supported
BIOS & System Features
•Real-time clock (RTC)
•Timed power-on
•Auto boot after power recovery
•UEFI diskless boot support
Display & Video Output
•HDMI: 1 × HDMI 2.0 (4K @ 60Hz)
•DisplayPort: 1 × DP 1.4 (4K @ 60Hz)
•USB-C: 1 × Type-C (4K @ 60Hz display support)
•Multi-display Support: Triple display (HDMI + DP + Type-C)
Networking & Connectivity
•Wi-Fi: Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
•Bluetooth: 5.2
Ethernet:
•1 × RJ45 (10/100/1000/2.5G adaptive)

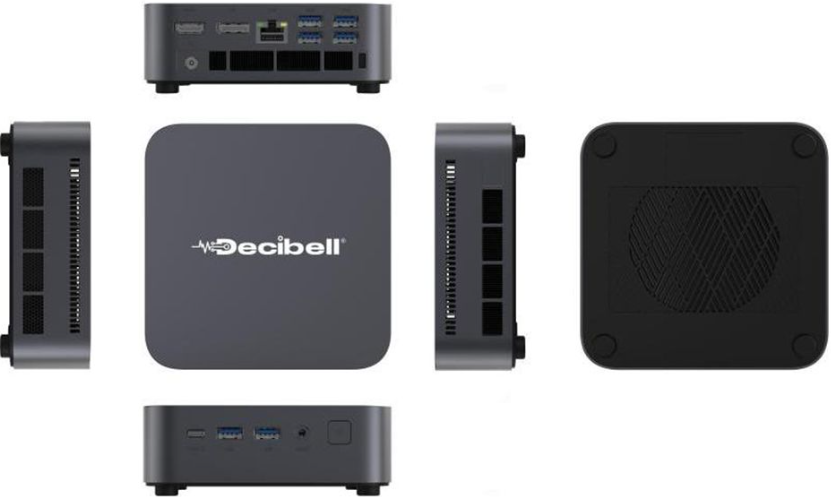

Ports & Interfaces
•USB Ports
•6 × USB 3.1 Type-A
Audio
•1 × 3.5mm combo audio jack
Other Interfaces
•1 × Type-C (Data + Display, 10–40Gbps)
•1 × DC power input (5.5 × 2.1 mm)
•1 × Power button
Wireless Antenna
•Dual FPC antennas for Wi-Fi (2.4GHz & 5GHz) and Bluetooth
Power Supply
•Type: External (Desktop / Plug-in)
•Input: 100–240V ~ 50/60Hz
•Output: 19V / 6.3A
•Connector: DC 5.5 × 2.1 mm
