Asus Prime A620AM AM5 Micro ATX Motherboard - AM5 Socket, AMD Ryzen 9000, 8000, and 700 Series Desktop Processors, AMD A620A Chipset, Support Up to AMD 120W CPU, 2 x DIMM Slots, Up to 128GB DDR5, Supports 8K at 30Hz DisplayPort 1.4 and 4K at 60Hz HDMI 2.1, 4 x SATA 6Gbps Ports and 1 x M.2 Slots, 256Mb Flash ROM, UEFI AMI BIOS, Windows 11 and Windows 10 64-bit OS, Micro-ATX Form Factor, Retail Box, 2 Years Warranty.

Product Overview

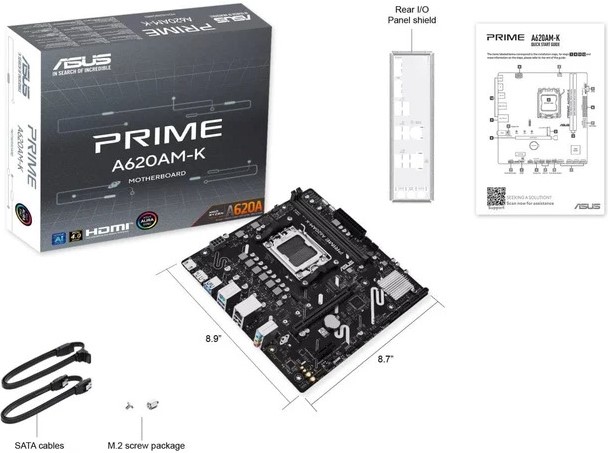

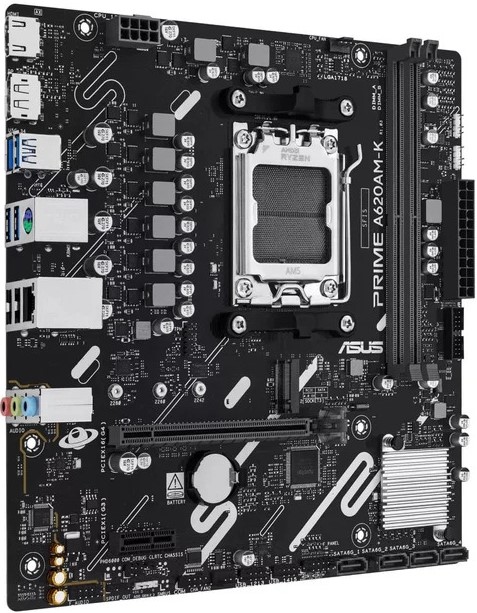

The ASUS PRIME A620AM-K is a compact micro-ATX AM5 motherboard supporting AMD Ryzen 9000, 8000 and 7000 Series processors up to 120 W. It features DDR5 memory support up to 128 GB, PCIe 4.0 expansion, one PCIe 4.0 M.2 slot, four SATA 6 Gb/s ports and integrated 1 Gb Ethernet. With HDMI, DisplayPort, USB connectivity, 7.1-channel audio, ASUS 5X Protection III and Aura Sync RGB support, it is well suited for reliable mainstream desktop builds.

Specifications

•Product Code: 90MB1GX0-M0EAY0
•Description: Asus Prime A620AM AM5 Micro ATX Motherboard
•Model: Prime A620AM-K
•CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors, Supports up to AMD 120W CPU
•Chipset: AMD A620A Chipset
Memory
•2 x DIMM slots, max. 128GB, DDR5
Supports up to
•Non-ECC Un-buffered DIMM*
•Dual channel memory architecture
Graphics
•1 x DisplayPort (Support Max 8K@30Hz DisplayPort 1.4)
•1 x HDMI™ port (Support 4K@60Hz HDMI 2.1)
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
•1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
•1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD A620A Chipset
•1 x PCIe 3.0 x1 slot
Storage
•Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
•M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620A Chipset
•4 x SATA 6Gb/s ports
RAID Support
AMD RAIDXpert2 Technology*
•Ryzen™ 9000 Series Processors: RAID 0/1/5/10
•Ryzen™ 8000 Series Processors: RAID 0/1
•Ryzen™ 7000 Series Processors: RAID 0/1/10
•Ethernet: 1 x Realtek 1GB Ethernet
Rear USB (Total 6 ports)
•4 x USB 5Gbps ports (4 x Type-A)
•2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
•1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
•2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

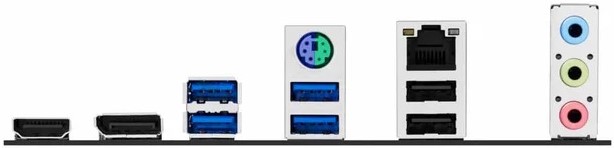

Back Panel I/O Ports
•4 x USB 5Gbps ports (4 x Type-A)
•2 x USB 2.0 ports (2 x Type-A)
•1 x DisplayPort
•1 x HDMI™ port
•1 x Realtek 1Gb Ethernet port
•3 x Audio jacks
•1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors
Fan and Cooling Related
•1 x 4-pin CPU Fan header
•2 x 4-pin Chassis Fan headers
Power Related
•1 x 24-pin Main Power connector
•1 x 8-pin +12V CPU Power connector
Storage Related
•1 x M.2 slot (Key M)
•4 x SATA 6Gb/s ports
USB
•1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
•2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
•3 x Addressable RGB Gen 2 headers
•1 x Clear CMOS header
•1 x COM Port header
•1 x Front Panel Audio header (F_AUDIO)
•1 x S/PDIF Out header
•1 x SPI TPM header (14-1 pin)
•1 x 10-1 pin Front Panel System header
