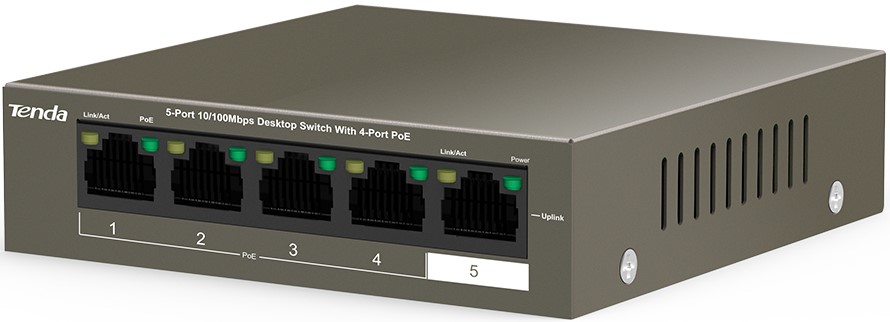

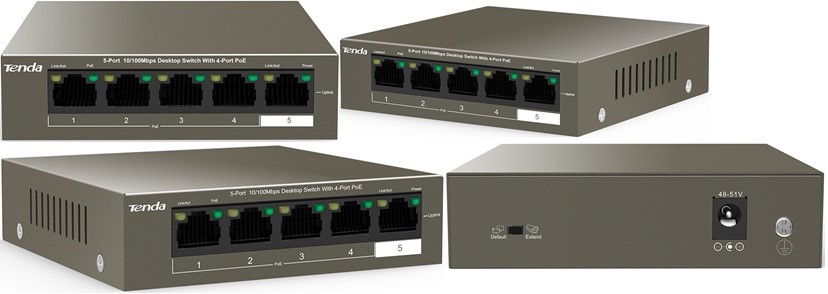

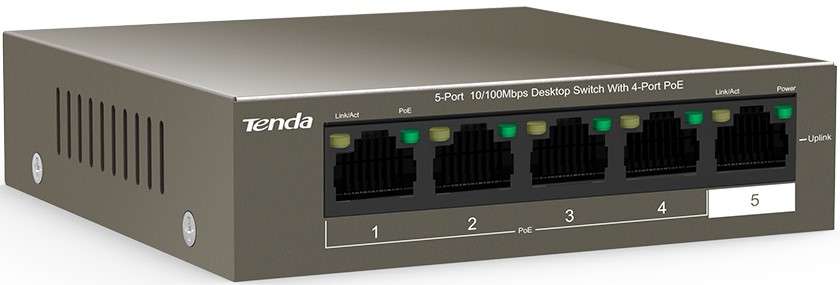

Tenda 5-Port 10 To 100Mbps Desktop Switch with 4-Port PoE
Please login To View Quantity, Stock Availability And Pricing
- If No Stock Is Available In DBN and CPT, You Can Still Place An Online Order.
- Stock Will Be Shipped During The Bi-Weekly Branch Replenishments.
TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.
Product Overview
The Tenda TEF1105P-4-63W is a 5-port 10/100 Mbps desktop switch with 4 PoE+ ports, providing up to 30W power per port and a total PoE budget of 58W. It supports long-distance transmission up to 250 meters and complies with IEEE 802.3af/at standards for powering devices like IP cameras and access points. This unmanaged switch features plug-and-play installation, one-key VLAN isolation, and 6KV lightning protection for reliable and easy network expansion
Features
•Supports desktop and wall-mounting
•Support two modes of Standard,Extend
•Single port output power 30W,maximum output power 58W
•4×PoE+ 10/100Mbps RJ45 ports,1×10/100Mbps RJ45 port
Specifications
•Product Code: TE-TEF1105P-4-63W
•Description: Tenda 5-port 10/100Mbps Desktop Switch with 4-port PoE
•Network standards: IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
LED Indicator
•5* Link/Ack LED indicators
•1 * Power LED indicator
Interfaces
•4*10/100 Base-TX Ethernet Ports(Data/Power)
•1*10/100 Base-TX Ethernet Port(Data)
•Transmission media: Recommended: CAT5/5e UTP or better
•Dimension: 100.0mmx100.0mmx26.0mm
Level of protection
•Lightning protection for ports: 6kV
•Lightning protection for power: 6kV
ESD:
•Air discharge: ±10kV
•Contact discharge: ±8kV
•Forwarding mode: Store-and-forward
•Switch capacity: 1Gbps
•Packet forwarding rate: 0.74Mpps
•Buffer: 448K
•MAC address table: 1K
PoE budget
•Single port: AF: 15.4W, AT: 30W
•Whole device: 58W

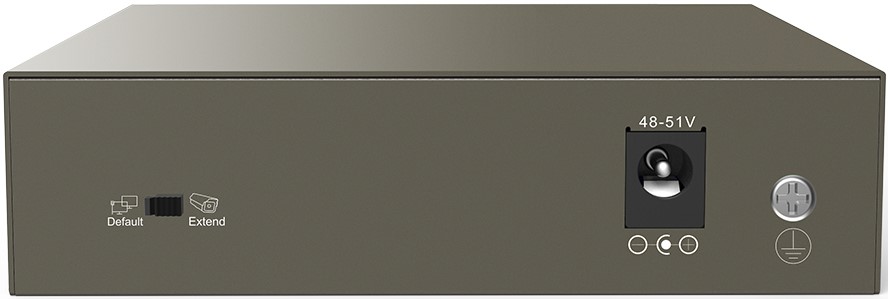

Input voltage
•100－240V AC 50/60Hz
•51V /1.25A DC（Power Adapter ）
Mounting
•Desktop mounting: support
•Wall mounting: support
•Rack mounting:non-support
Environment
•Operating Temperature: 0℃~45℃
•Storage Temperature: -40℃~70℃
•Operating Humidity: 10%~90% non-condensing
•Storage Humidity: 5%~90% non-condensing
•Certification: FCC、CE、RoHS
