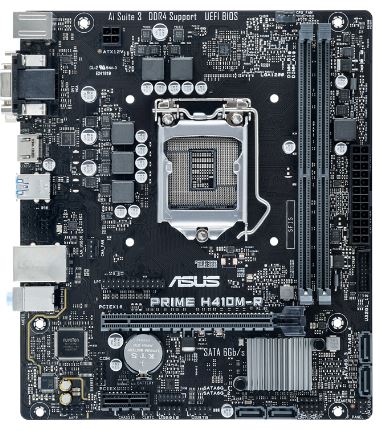

ASUS PRIME H410M LGA1200 mic-ATX motherboard

ASUS PRIME H410M LGA1200 mic-ATX motherboard - micro-ATX motherboard designed to support 10th Generation Intel Core processors through the LGA 1200 socket. It features the Intel H410 chipset, DDR4 memory support up to 2933 MHz, and includes a PCIe 3.0 x16 slot for graphics cards. The motherboard offers HDMI, DVI, and D-Sub display options, along with USB 3.2 Gen 1 ports and a Realtek Gb Ethernet connection. It includes robust power design with 10+1 DrMOS power stages, ASUS OptiMem for improved memory stability, and 5X Protection III for enhanced hardware safeguards Max. 64GB;1 x PCIe 3.0 x16 (x16 mode); 1xPCIe 3.0; 4xSATA 6Gb/s. DDR4. 1xHDMI

Product Overview

The ASUS PRIME H410M LGA1200 mic-ATX motherboard is a compact micro-ATX motherboard designed for Intel's 10th Generation processors. It supports DDR4 memory up to 2933 MHz and features a PCIe 3.0 x16 slot for graphics expansion. The motherboard includes multiple display options such as HDMI, DVI, and D-Sub. It also offers robust connectivity with USB 3.2 Gen 1 ports and a Realtek Gb Ethernet connection. Overall, it provides a solid foundation for building efficient desktop systems.

Specifications

• Product Code : PRIME H410M-R-SI
• Product Overview : ASUS PRIME H410M LGA1200 mic-ATX motherboard
• Socket : Intel LGA 1200
• CPU Support : 10th Generation Intel Core processors
• Chipset : Intel H410
• Memory :
   Type : DDR4
   Speed : Up to 2933 MHz
   Slots : 2 DIMM slots
   Max Capacity : 64 GB
• Expansion Slots : 1 x PCIe 3.0 x16
• Storage : 4 x SATA 6Gb/s ports , 1 x M.2 slot (up to 16 Gbps)

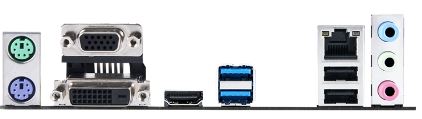

• Display Outputs : HDMI 1.4b, DVI-D, D-Sub
• USB Ports : 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 ports
• Networking : Realtek Gb Ethernet
• Audio : Audio Shielding, Dedicated Audio PCB Layers, 3 x Audio jacks
• Power Design : 10+1 DrMOS Power Stages, ProCool Connector
• Protection Features : 5X Protection III, Overvoltage Protection, DRAM Overcurrent Protection
• Cooling : PWM fan headers with auto-detection
• BIOS : ASUS UEFI BIOS
• Dimensions : Micro-ATX (24.4 cm x 24.4 cm)
