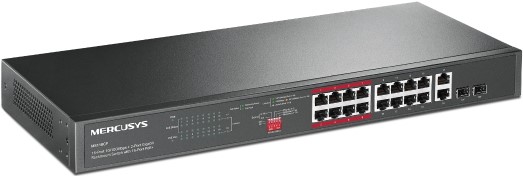

Mercusys 16 Port Plus 2 Port Gigabit Rackmount Switch With POE+ - 16 x PoE+ 10/100Mbps RJ45 Ports, 2 x Gigabit RJ45 Ports, and 2 x Combo Gigabit SFP Slots, Up to 30W High PoE Power, 190W For Each PoE Ports, Up to 250m Data and Power Transmission, 1 to 8 Ports Priority Mode, 1 to 16 Isolation Mode, 1 to 16 Port PoE Auto Recovery, 2 Fans, 10KB Jumbo Frame, 7.2Gbps Switching Capacity, 8K Mac Address Table, 5.36Mbps Packet Forwarding Rate, Retail Box, 6 Months Warranty.

Product Overview

Mercusys 16 Port Plus 2 Port Gigabit Rackmount Switch with PoE+ Supports IEEE 802.3i/u/ab/x/1p standards with 16 PoE+ 10/100 Mbps RJ45 ports, 2 Gigabit RJ45 uplinks, and 2 combo Gigabit SFP slots for flexible high-speed networking. With a 190 W PoE budget, 32 Gbps switching capacity, 8K MAC table, store-and-forward forwarding, and features like PoE auto recovery, extend mode, and port isolation, it delivers dependable power and data for IP devices. Its 440 × 180 × 44 mm rack-mount design includes dual fans, physical security lock, and CE/FCC/RoHS compliance, making it suitable for surveillance and business network deployments.

Featues

•16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
•High PoE power budget with up to 30 W for each PoE port and 190 W for all PoE ports.
•Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
•Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
•Isolation Mode allows one-click client traffic separation for higher security and performance.
•PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
•Easy to use, with no configuration and installation needed.

Specifications

•Product Code: MS118CP
•Description: 16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
•Transfer Method: Store-And-Forward
Advanced Features
•Compatible With IEEE 802.3at/af Compliant PDs
•Extend Mode (Up to 250m PoE power supply and data transmission)
•Priority Mode (Ports 1-8)
•Isolation Mode (Ports 1-16)
•PoE Auto Recovery (Ports 1-16)
•MAC Address Auto-Learning And Auto-Aging
•IEEE802.3x Flow Control
Hardware
•Dimensions (W X D X H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
PoE Ports
RJ45
•Standard: 802.3at/802.3af compliant
•PoE Ports: Ports 1–16
•PoE Power Budget: 190 W
Interfaces
•16 PoE+ 10/100 Mbps RJ45 Ports
•2× 10/100/1000 Mbps RJ45 Ports
•2× Combo Gigabit SFP Slots
Network Media
•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•1000BASE-X MMF, SMF
•Power Supply: 100–240V AC, 50/60 Hz
•Fan Quantity: 2 Fans
•Physical Security Lock: Yes
•Jumbo Frame: 10 KB
•Switching Capacity: 7.2 Gbps
•Mac Address Table: 8 K
Max Power Consumption
•13.07 W (220/50Hz. no PD connected)
•218.91 W (220/50Hz. with 190W PD connected)
Max Heat Dissipation
•44.57 BTU/h (no PD connected)
•746.48 BTU/h (with 190W PD connected)
•Packet Forwarding Rate: 5.36Mbps
•Operating Temperature: 0–50 °C (32–122 °F)
•Storage Temperature: -40–70 °C (-40–158 °F)
